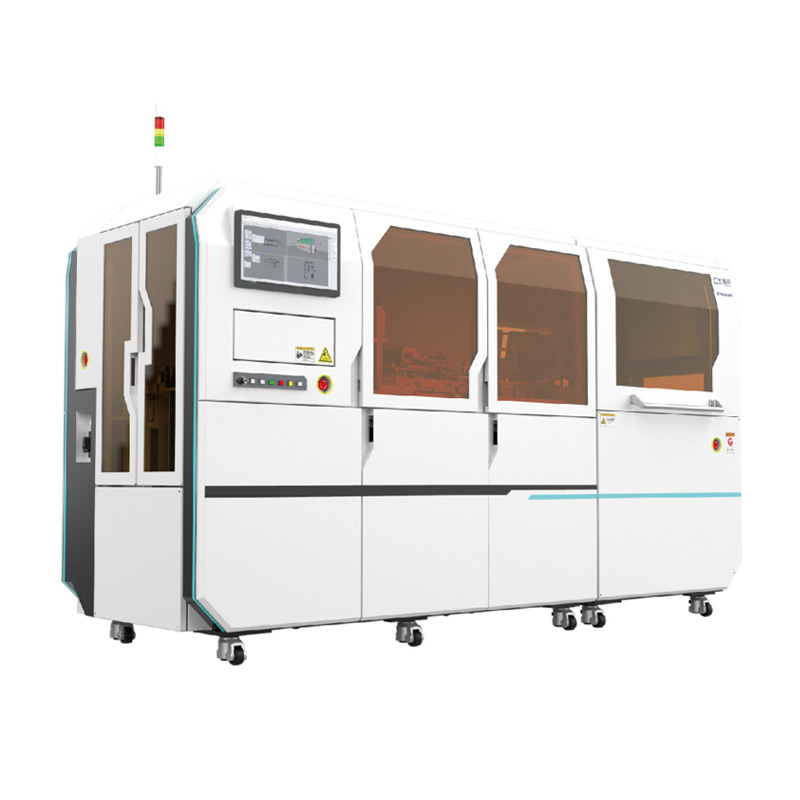

Full automatic large-size corner forming machine

Forming & Singulation F6000

equipment characteristics

High speed punching (200 times / min)

Feeding visual inspection

High precision real-time detection

Automatic up and down receiving mechanism

	project	unit	T6000
Basic Information	Machine size (LWH)	mm	300510801726
	machine weight	Ton	1.7
	noise	decibel	<55
	output per hour	times/min	180
basic ability	orbital working range	mm	W ： 30-110 L ： 180-300
	Maximum processed product	mm	100*300
	Number of loading and unloading boxes	pcs	2
	Allowable workpiece warpage	mm	X:≤8 Y:≤4
	delivery form	-	Belt/Track/Servo
	Reverse (front and back or 180°)	-	camera
	Punching mode	(servo/cam)	IN
visual system	direction	-	IN
visual system	Outlet quality	you	IN
change machine	time	min	<15
change machine	File selection method	-	Manual + ToolingID recognition
Power specifications	power supply	-	AC380V/50-60HZ/25KVA
Power specifications	Gas source	-	Pressure: 0.6Mpa Flow: 1000L/Min
environmental conditions	room temperature	°C	20-25
environmental conditions	humidity	-	<70% (non-condensing)
