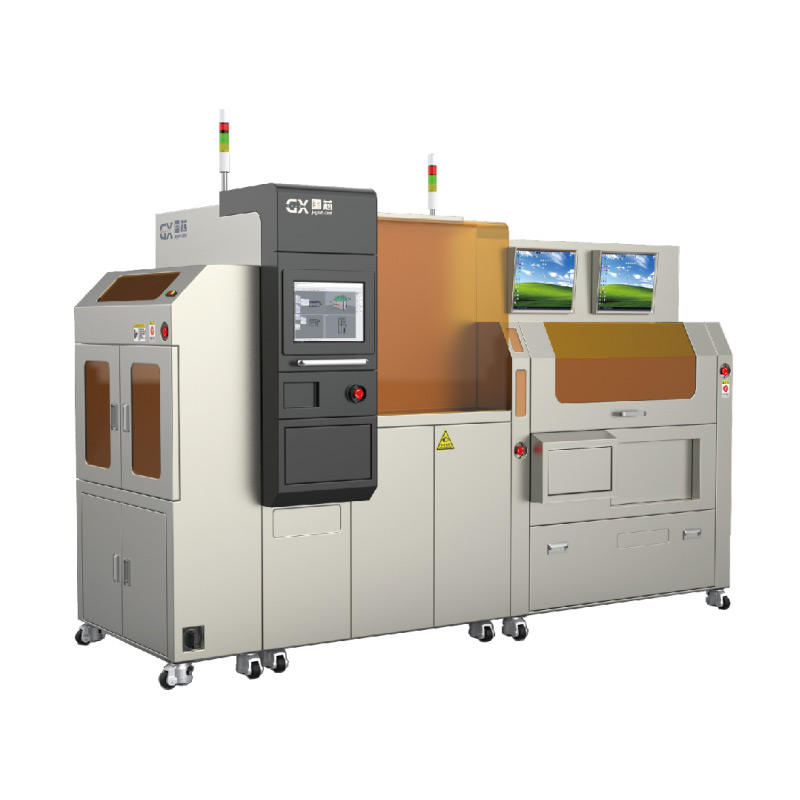

Jig Saw GX-PS6000
It is mainly used for post process packaging of integrated circuits, semiconductor devices and led substrates
The main applicable product packaging forms are: QFN, BGA, CSP, led substrate, etc industry status
The technical indicators of the full-automatic jig saw cutting system of Guoxin are benchmarked with the models of leading enterprises in the industry, filling the domestic gap and breaking the international monopoly
| Basic Information | project | unit | GX-PS6000 | |||
| cut | Max.workpiece size | Maximum work area | mm | 360*360 | ||
| X-axis | Cutting range | mm | 400 | |||
| cutting speed | mm/s | 0.1~1,000 | ||||
| Y1-Y2-axis | Cutting range | mm | 400 | |||
| single step | mm | 0.0001 | ||||
| Absolute positioning accuracy | mm | 0.002/400 | ||||
| Z-axis | Maximum stroke | mm | 30 | |||
| Repeatability | mm | 0.0001 | ||||
| θ-axis | Maximum stroke | you | 320 | |||
| Spindle | Output Power | In | 1800 | |||
| output force | NM | 0.29-0.7 | ||||
| speed range | min-1 | 6,000-60,000 | ||||
| Saw table | table | pcs | 2 | |||
| Calibration positioning | pcs | 2CCD, opposite independent pre-finding point mode | ||||
| Loading | UPH | pcs | 35000 | |||
| Sheet size | mm | 300*100 | ||||
| Cartridge area | mm | 800 | ||||
| smallest particle | mm | 1.5*1.5 | ||||
