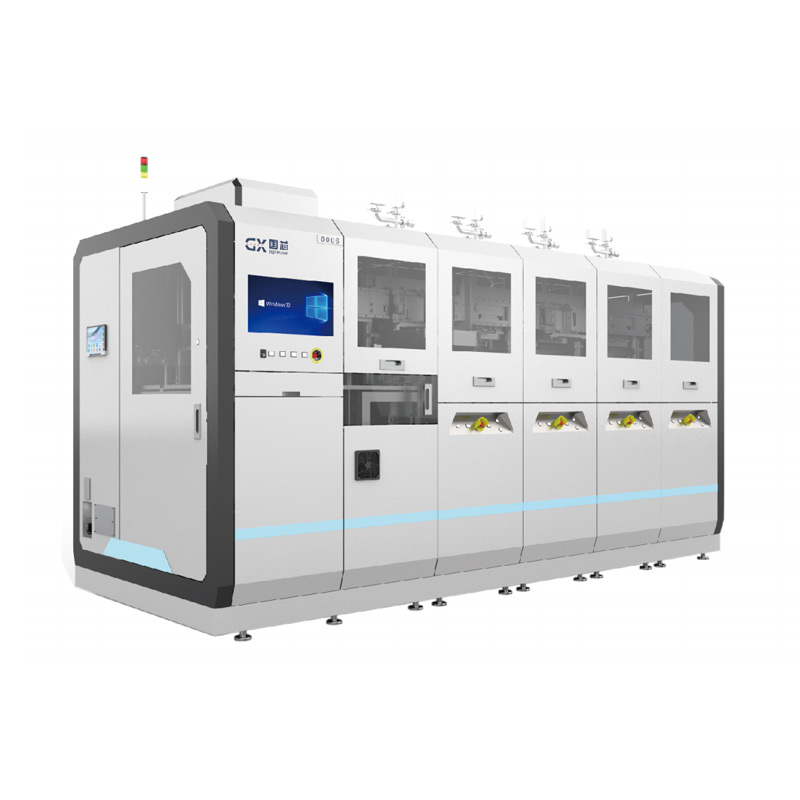

Automatic injection molding and packaging machine

Auto Mold M6000

equipment characteristics

Maximum operation frame: 78 * 260mm

Free matching module

Clamping pressure: 120t

Different clamping pressures kit, molds and mold bases can be shared

	Project	Unit	M6000
Essential information	Equipment size (length * width * height)	mm	350018002000
	Die box unit size (width)	mm	680
	Machine weight	ton	10(3press)
	noise	Decibel	<65
	Hourly output	Tablets / min	≥4
Basic ability	Clamping pressure range	TON	10-120
	Injection pressure range	TON	2
	System mechanical time	second	22
	Misalignment of upper and lower shapes of packaging products	mm	≤0.038
	The package and lead frame are misaligned	mm	≤0.038
	Maximum corresponding lead frame	mm	78*260
	Number of optional die box units（press）	number	2-4
Material sheet	type	-	DIP、SOP、SOT、QFP、QFN...
Material sheet	Discharge quality	-	Vison
Power specification	Power Supply	-	AC380V/50-60HZ/60KVA(4Press)
Power specification	Gas source	-	Pressure：0.6Mpa Flow：600L/Min
Environment condition	Room temperature	℃	20-25
Environment condition	Humidity	-	<70%（Non condensing）
