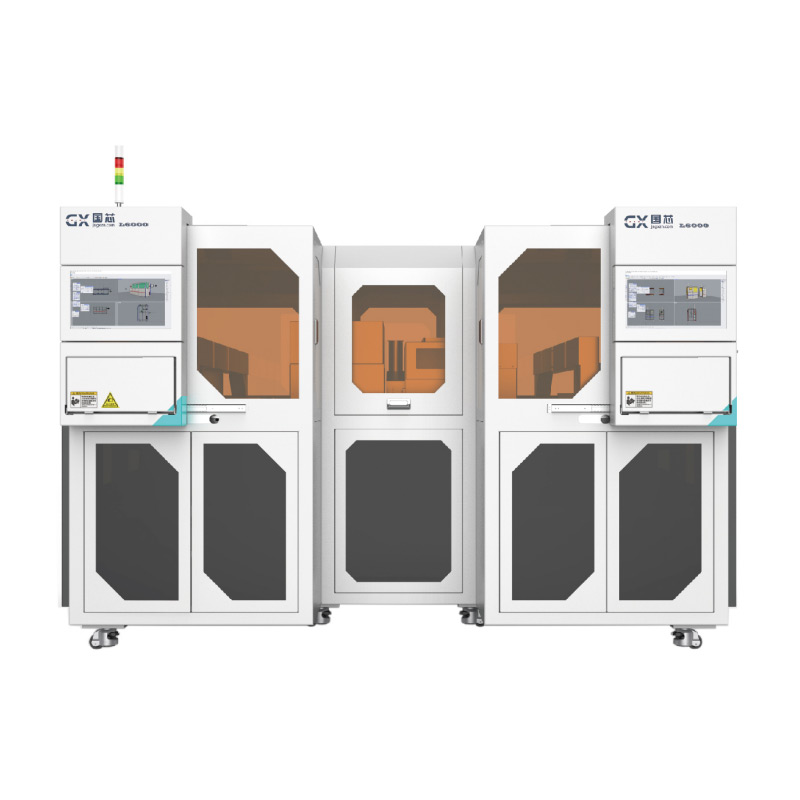

Laser Marker Machine L6000
Double track operation
CCD precise positioning
LF & sub product common platform
3D deviation correction function
| project | unit | L6000 | |
| Basic Information | Machine size (L*W*H) | mm | 1800*2750*1700 |
| machine weight | Ton | 3.3 | |
| noise | decibel | <50 | |
| output per hour | pieces | 1200 | |
| basic ability | Match product type | - | Strip type L/F type |
| orbital working range | mm | W ： 30-110 L ： 180-300 | |
| Number of loading and unloading boxes | pcs | Stacked: 1 Push-pull: 5-8 | |
| Allowable workpiece warpage | mm | X:≤10 Y:≤4 | |
| delivery form | - | Belt/Track/Servo | |
| Reverse (front and back or 180°) | - | camera | |
| Image Mapping (2D/MarkOut) | - | IN | |
| print type | - | positive print | |
| laser | Maximum processed product | mm | 330*330 |
| Printing accuracy | vacant | ±15 | |
| camera | The maximum field of view of the camera | MM | 16*14 |
| Product maximum correction angle | you | 5 | |
| Camera positioning accuracy | vacant | 5 | |
| system capability | Machine communication standard | - | IN |
| Statistical Process Control | - | IN | |
| change machine | time | min | <10 |
| File selection method | - | BarCode | |
| Power specifications | power supply | - | AC380V/50-60HZ/10KVA |
| Gas source | - | Pressure: 0.6Mpa Flow: 4000L/Min | |
| environmental conditions | room temperature | °C | 20-25 |
| humidity | - | <70% (non-condensing) |
